Su jeti kesim makinesi
Su jeti kesim sistemleri, malzeme üzerindeki termal etkilerin istenmeyen olduğu ve en yüksek hassasiyetin gerekli olduğu durumlarda kullanılır.Esneklikle ikna ederler çok çeşitli malzemeler üzerinde çok sayıda kesme görevi için işleme seçenekleri.
  • Highly precise and without thermal influence

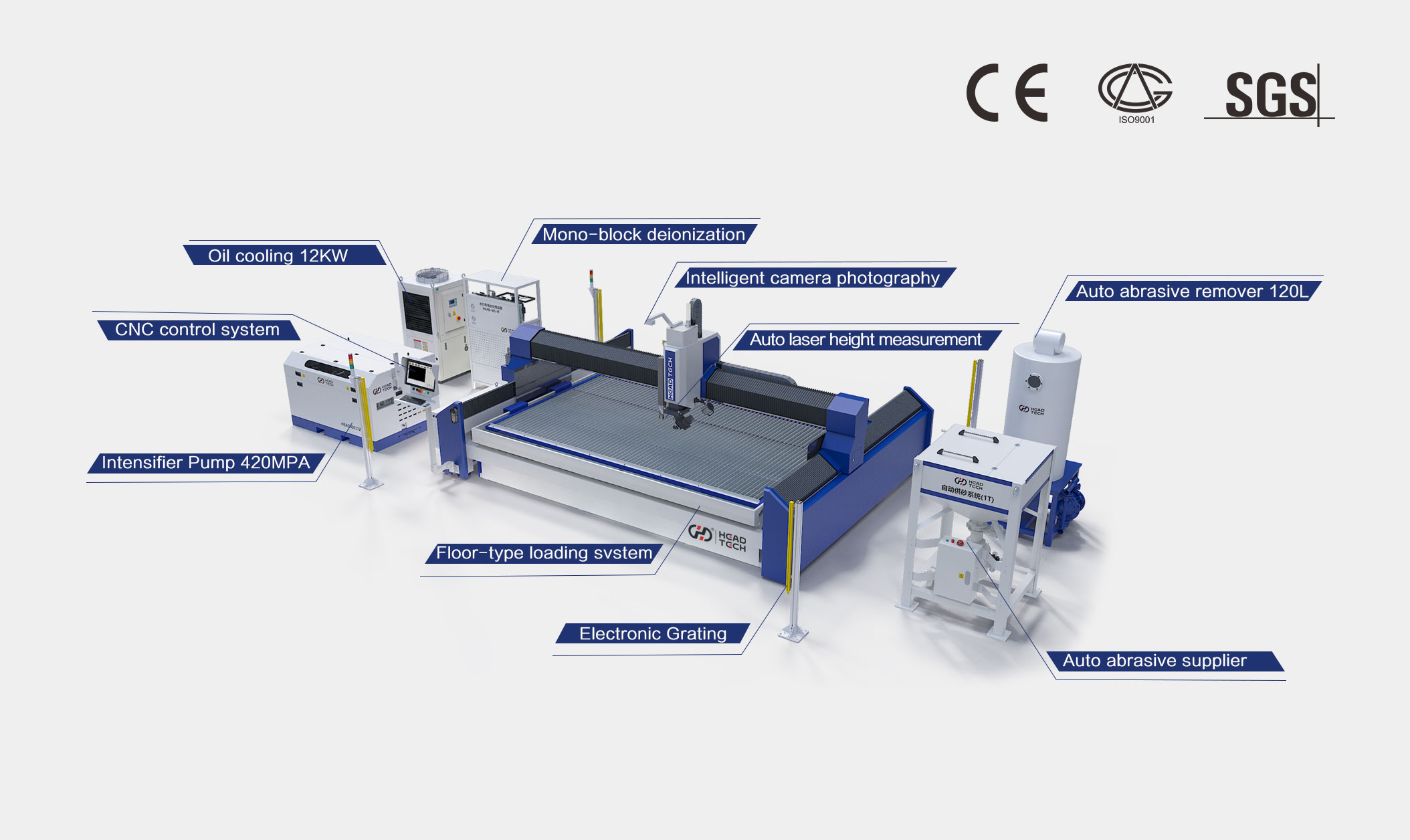

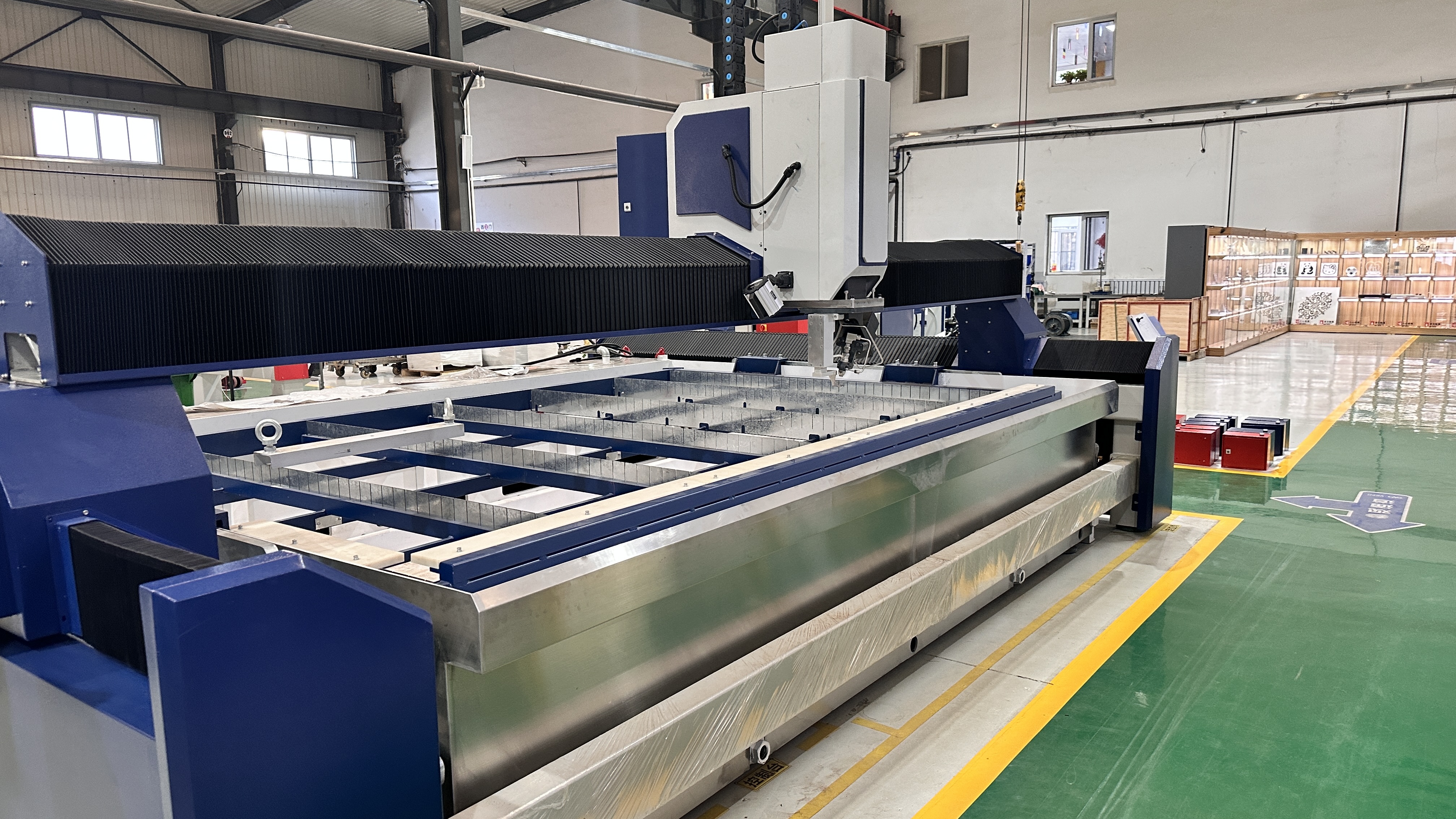

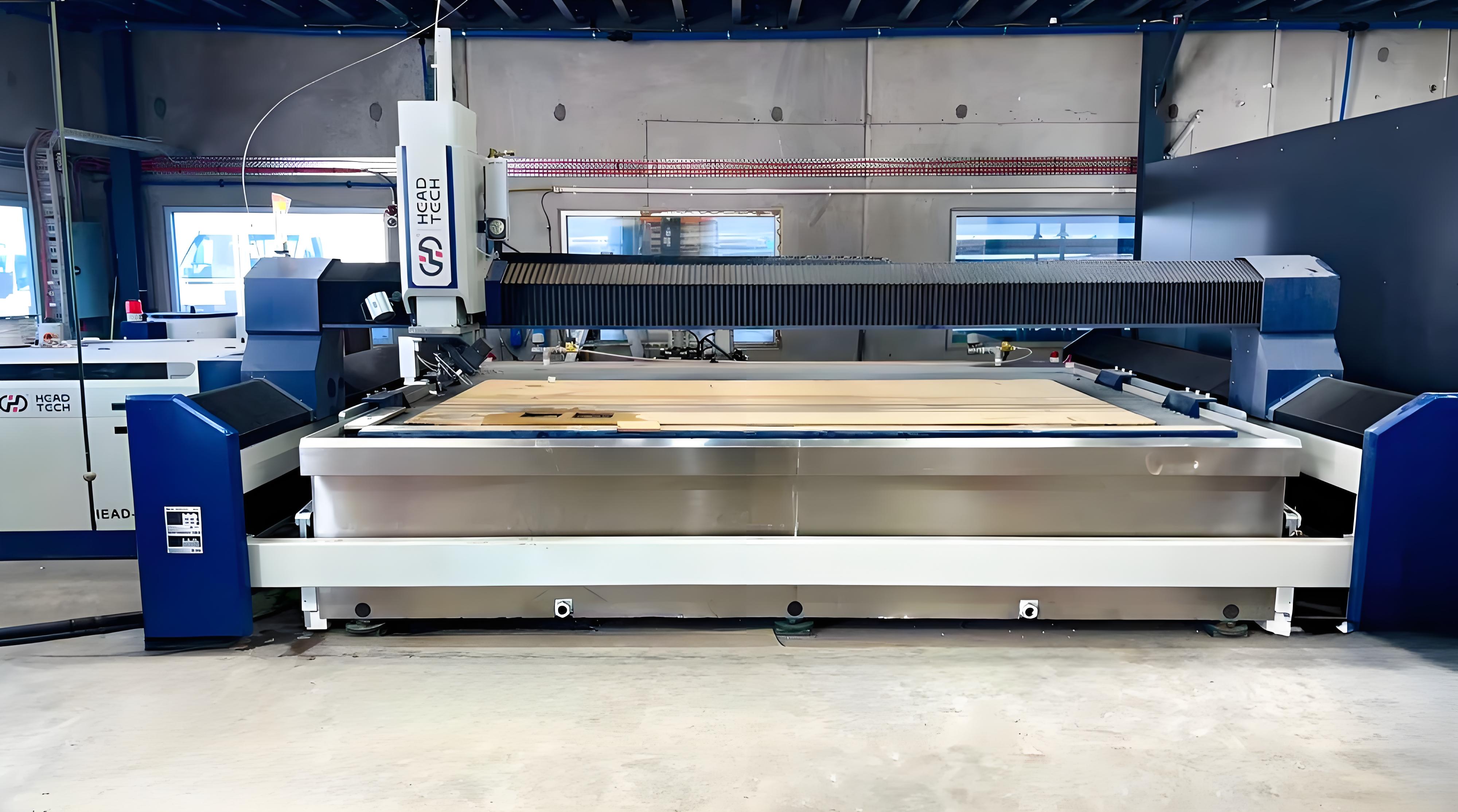

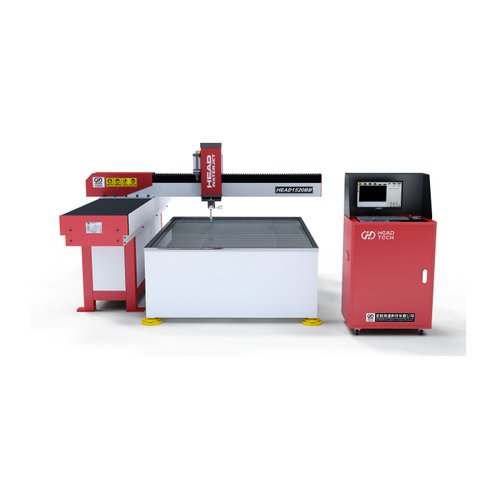

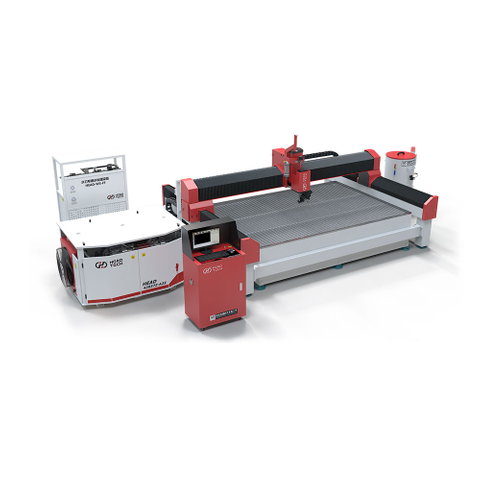

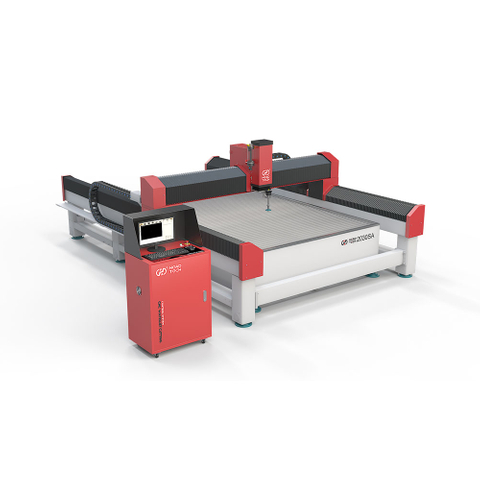

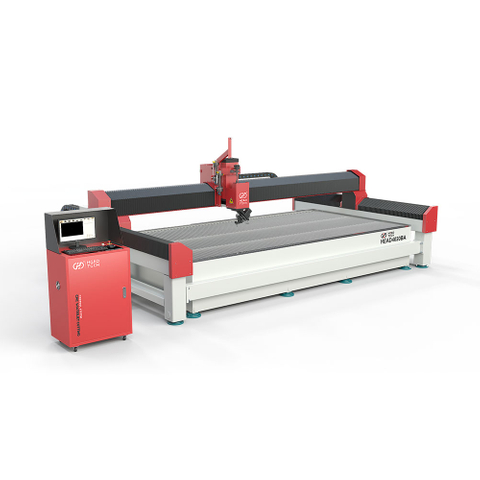

    This is a high-precision CNC waterjet cutting machine designed to machine a wide variety of materials, including those that cannot withstand thermal or mechanical stress.
    Pure water or abrasive cutting can be applied to metal, stone, marble, tempered glass, ceramics, plastics, wood, thick corrugated cardboard, foam and sandwich materials, etc.

    The machine can be equipped with a 75 degree 5-axis waterjet rotator for bevel cutting, combined with plasma, pipe and profile cutting or tapping. Additional features include Additive Bevel Processing (ABP) and Taper Compensation (ABC).

    • Cutting accuracy +/- 0.1mm
    • Positioning accuracy +/- 0.02mm
    •PC control 17" touch screen
    •NcStudio PC1MC=6A software *changes DXF documents from AutoCAD into NC process
    •Serial communications between PC and CNC. Open database can shore parameter, click the material parameter will be loaded automatically
    •Calculate length of line and cut-in automatically
    •Control cut-out and cut-in automatically
    •High Pressure Pump from 3800 Bar/55,000 Psi - 4137 Bar/60,000 made by Accustream/Hypertherm USA
    •Cooling system
    •Abrasive feeder
    •Water cleaning gun
    •Tool kit
    •Consumables for one year
  • Technical specifications

    X Y Positioning Accuracy ≤±0.05 mm per 300 mm
    Positioning Accuracy +/-0.02 mm
    X,Y dry-run Speed  0-15m/min (if need 30m/min speed,we can do as request )
    Cutting Accuracy  ±0.1mm
    Repeat Accuracy   ≤ ±0.03mm
    Max. Speed X, Y  10000mm/min

    • Water jet working table independent of the frame, eliminate vibrations and  temperature deformations; keep long time of work.
    • Water tank is reliable and durable, made of steel 5 mm thick.Height 750 mm, convenient for loading and unloading
    • • Slope-type folding cloth protection structure prevents the accumulation of sand splashed during water cutting, which affects the accuracy and life of the stroke.
    • • Z axis is equipped with a lighting system, which is convenient for monitoring and equipment maintenance during equipment operation
    • • Dedicated thick metal cutting water tank, platform load-bearing capacity is 500kg more than similar competing products, longer service life


    • • Integrated integrated CNC system, suitable height, ergonomic design concept The display can be rotated 360 degrees to meet the needs of the operator from all angles
    • • Upgrade to IP65 waterproof and dustproof computer, keyboard and mouse IP65
    • • Increase the splash protection to improve the safety and life of the equipment
    • • An air-conditioning control system is added inside the CNC cabinet. Most of the cooling systems on the market are still cooled by fans to ensure the operating temperature of the electrical components of the equipment and improve the stability of the equipment.
    • • A lighting system is added inside the CNC cabinet to facilitate equipment maintenance and reduce the difficulty of operator maintenance2023-3-1 集成控制柜细节展示(一体控制柜)32023-3-1 集成控制柜细节展示(一体控制柜)1
    • • Function to continue from the same point after stopping.
    • • Automatic programming function.
    • • Pre-cut path simulation function
    • • Automatic tool compensation adjustment function.

    图片9图片10

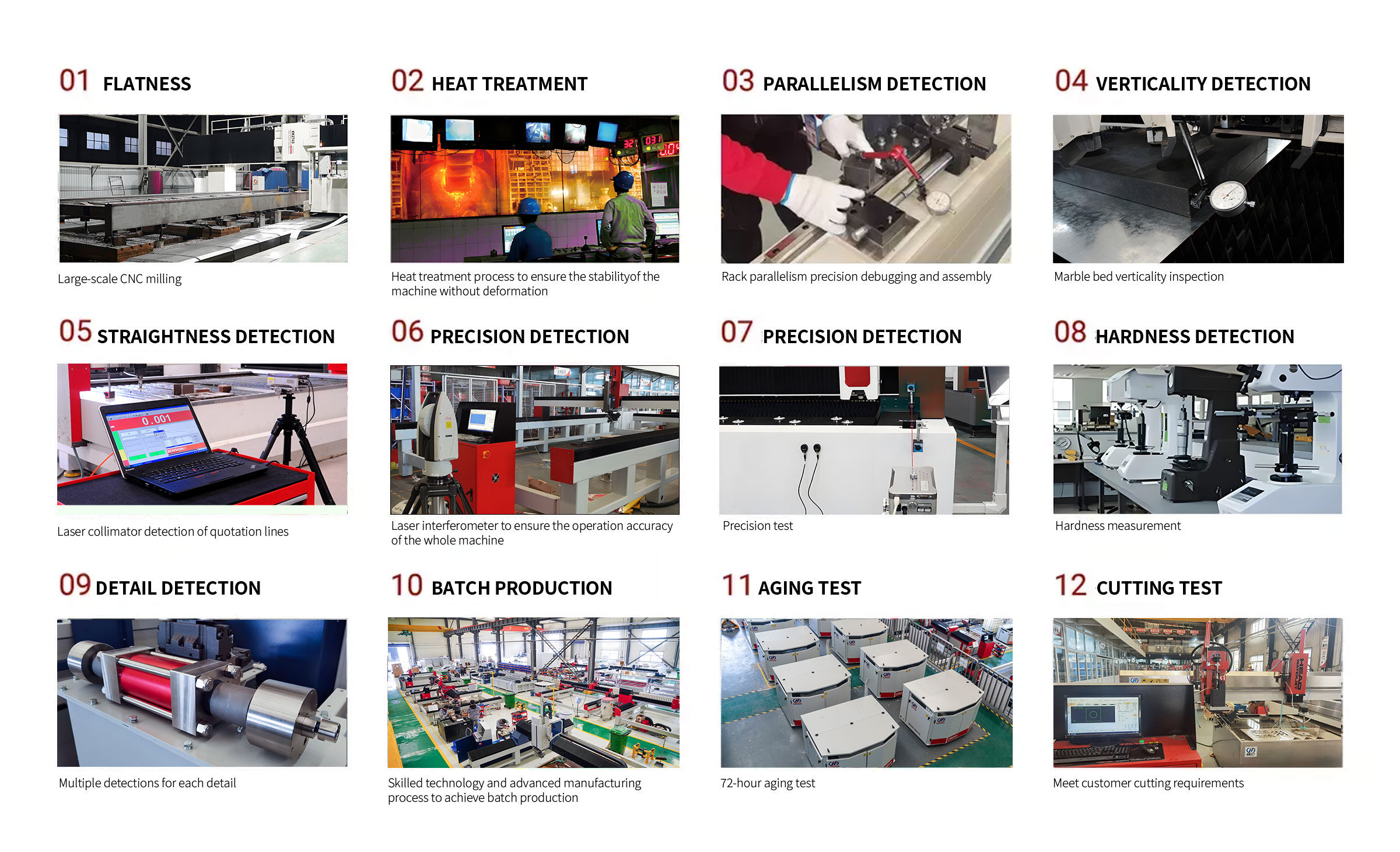

Prioritizing Quality Consistency And Accuracy

Biz HEAD Waterjet'iz ve Özel Kesim Çözümleri de Sunuyoruz

Son derece üretken, güvenilir ve sezgisel su jeti çözümleri üretiyor ve sağlıyoruz.

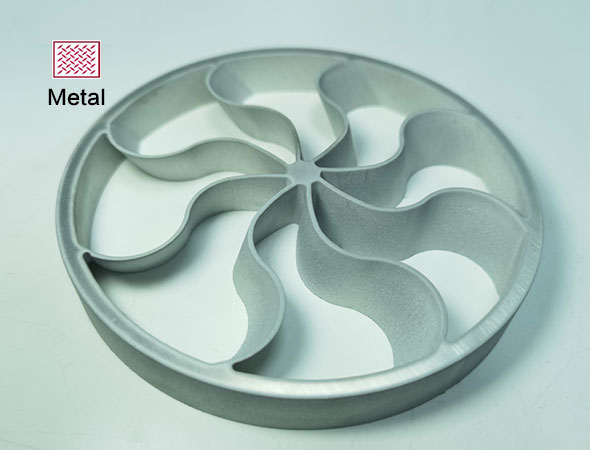

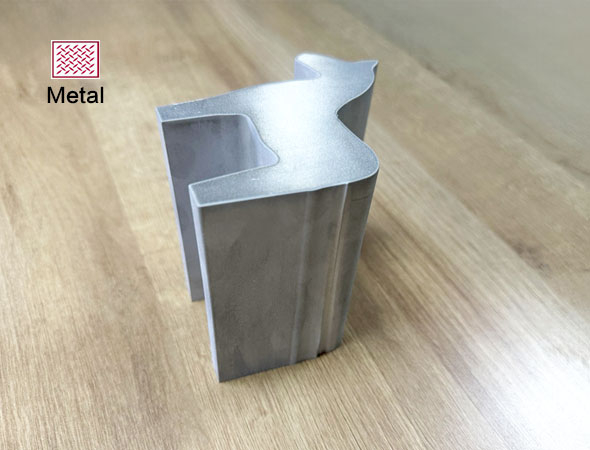

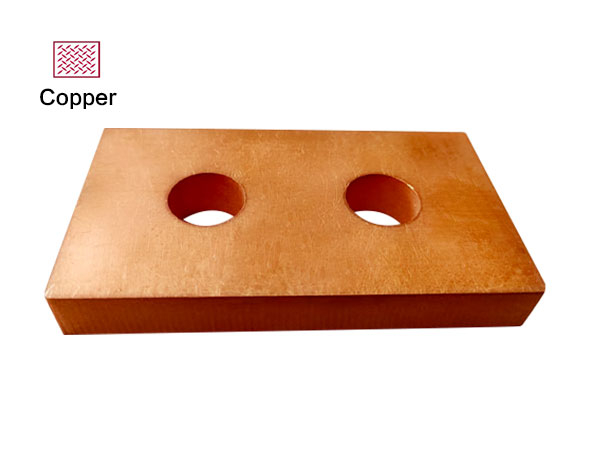

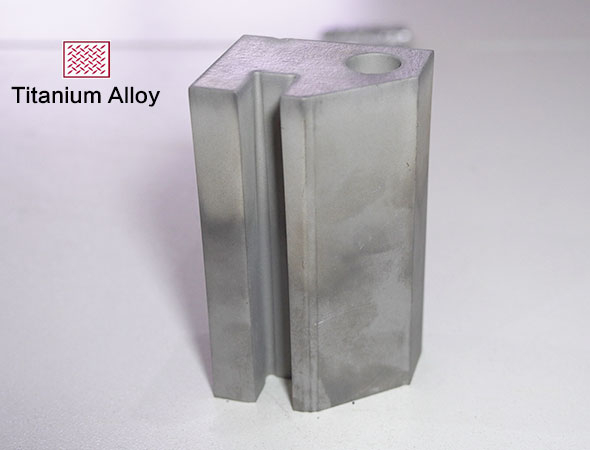

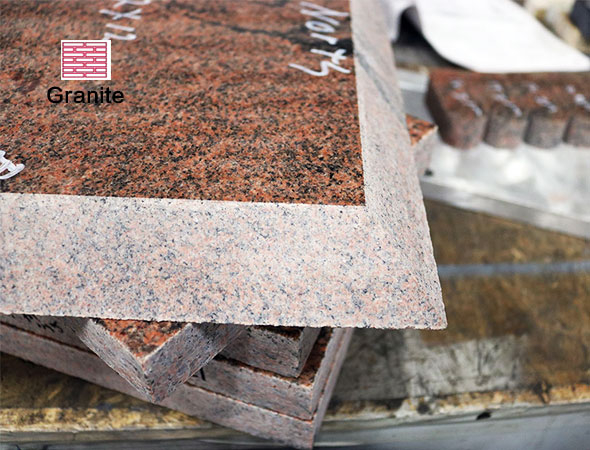

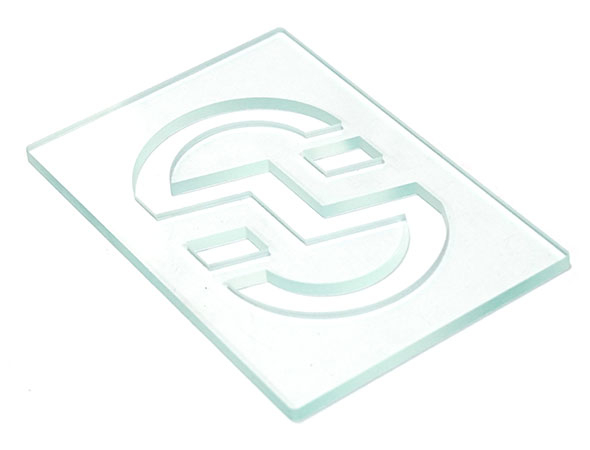

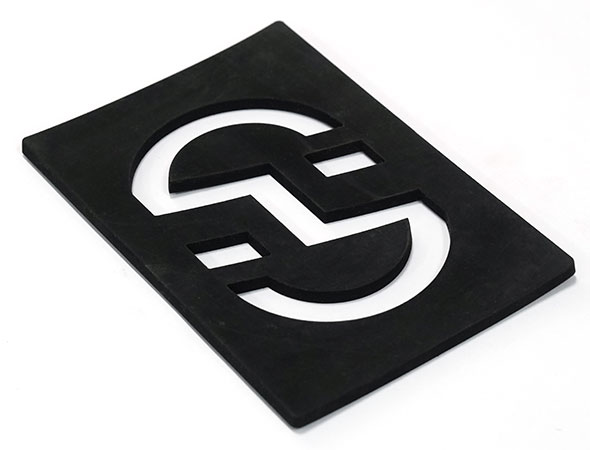

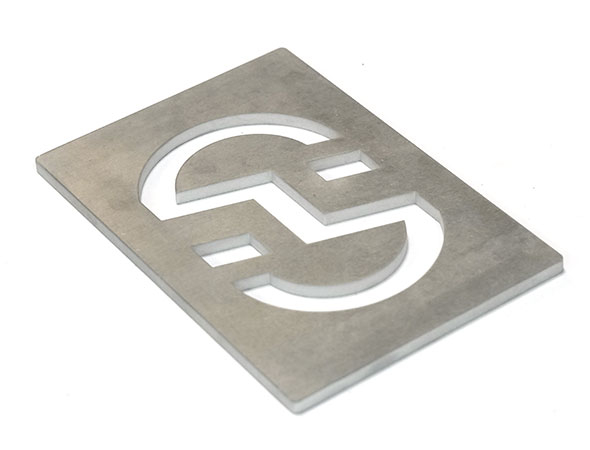

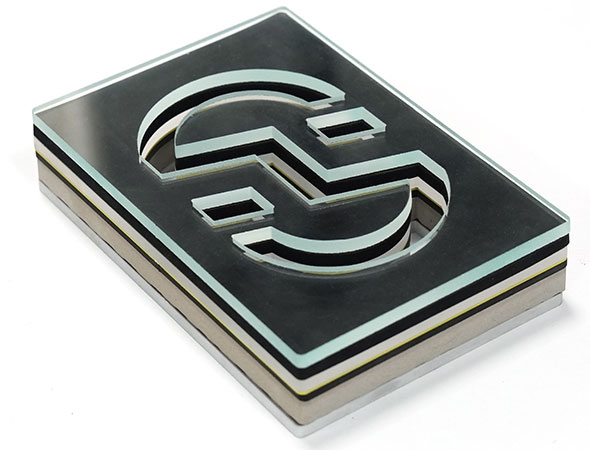

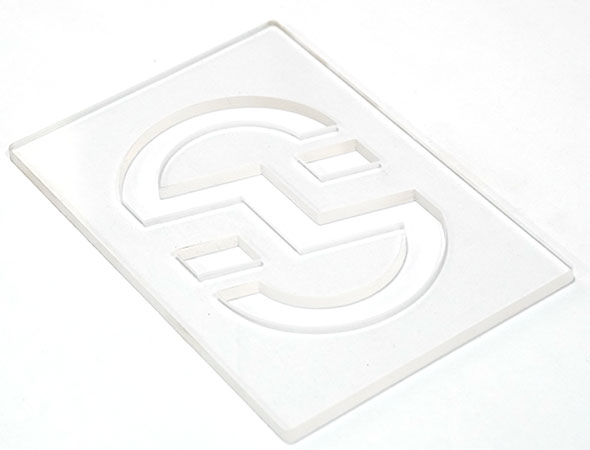

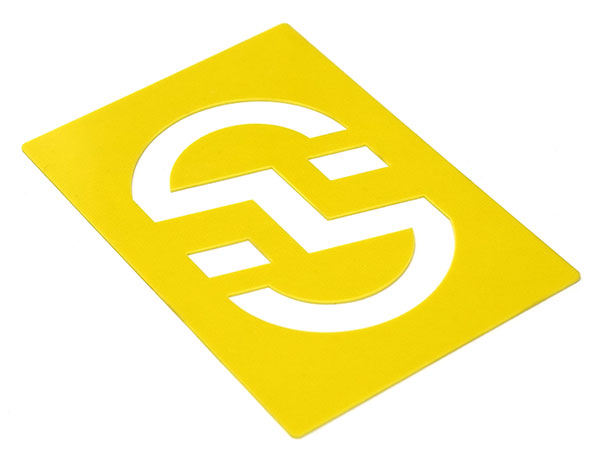

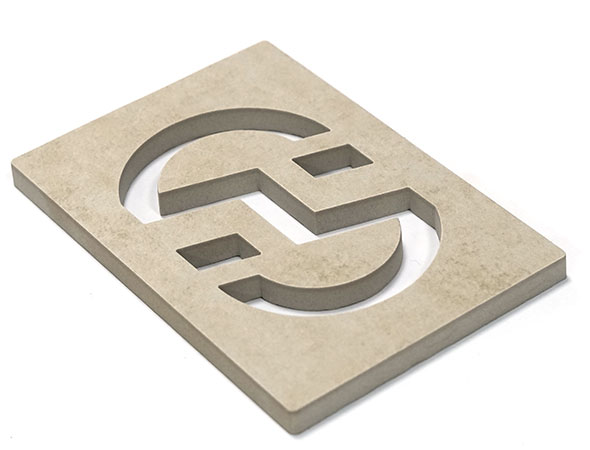

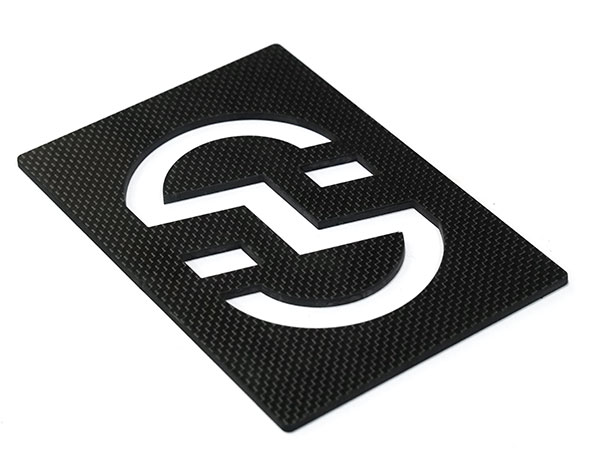

Su Kesme Örnekleri Burada
Ürünlerimizi daha sezgisel bir şekilde anlamanız için, su kesme makinemizin çalışma prensibini ve özelliklerini hızlı bir şekilde anlayabileceğinizi umarak ücretsiz numune kesimi sağladık.
Profesyonel Yerel Satış Sonrası Teknik Ekip
Nitelikli teknisyenlerden uzman tavsiyesi sağlıyoruz.Sektörün ilerlemesini sağlamak için su jeti kesim makineleri için öncü destek sağlamaya kararlıyız.
Hizmet Verdiğimiz Sektörler

On yılı aşkın bir süredir, belirli üretim ve malzeme kesme ihtiyaçlarını karşılamak için çeşitli endüstri portföylerinde binlerce su jeti kesim makinesi ürettik ve kurduk.

Head güçlü bir araştırma ve geliştirme, üretim satış ve servis ekibine sahip olduğundan, Shenyang Head Science and Technology Co., Ltd su jeti alanında tanınmış işletmeler haline geldi.
